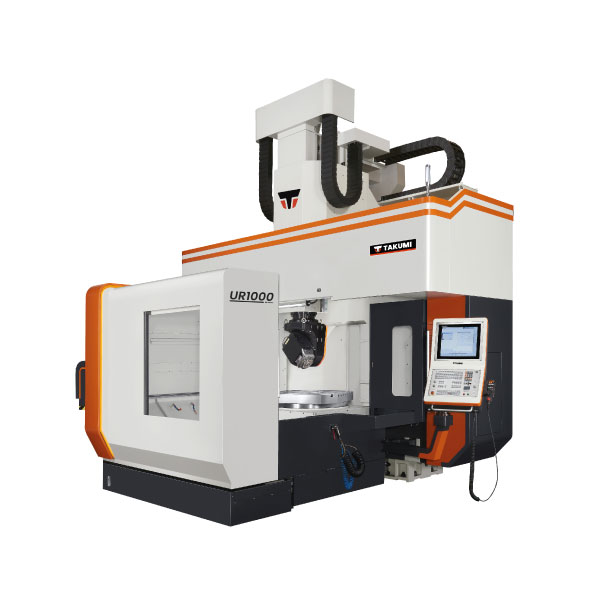

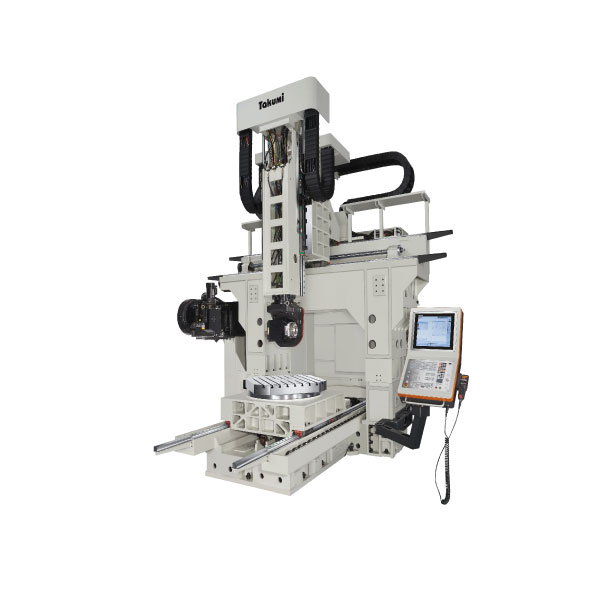

The UR1000 is the newest 5-axis machining centre that was launched at TIMTOS in Taiwan last year. With a motorised Italian swivel head spindle on a robust double column frame, the highly flexible UR1000 is available with a choice of either a 1000 mm C-axis rotary table, a dual combination of flat and rotary tables, or a 1600 x 1000 mm flat rectangular table.
Travel (X, Y, Z) 1500 x 2040 x 1000 mm
Table Size Ø1000 mm
Table Capacity 2500 kg
Spindle 24,000 rpm / HSKA63
Rapid Traverse Rate (X, Y, Z) 20 / 16 / 20 m/min
Weight 28000 kg
