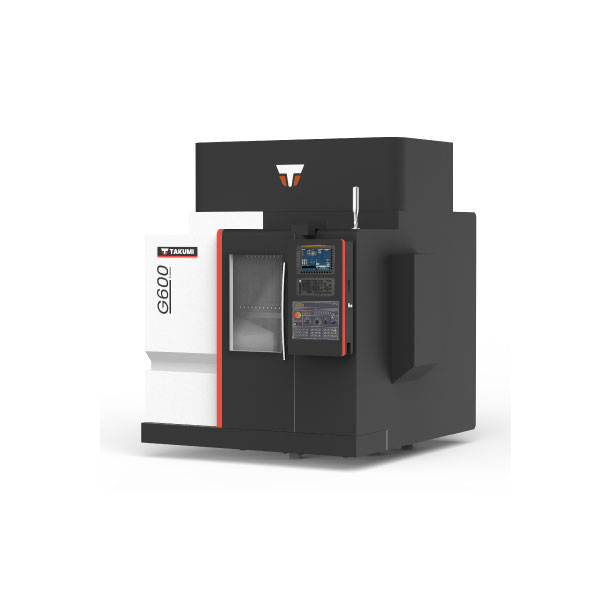

The G Series of machining centres, comprising of three models, has been developed to cope with the aggressive environment created when machining graphite. Operator safety and protection is assured by a sealed work area and seamless telescopic covers, combined with a large vacuum system for evacuation of harmful particles. To minimise the interval between services and in order to prolong machine life, the ballscrews, linear guideways and spindles are of particle-proof design and manufacture. The built-in high power, high speed spindles have embedded automatic thermal compensation and a cooler to ensure high accuracy.
Travel (X, Y, Z) 550 x 600 x 350 mm
Table Size 600 x 600 mm
Table Capacity 500 kg
Spindle 30,000 rpm / HSKE40
ATC 20
Rapid Traverse Rate (X, Y, Z) 30 / 30 / 30 m/min
Weight 5500 kg
